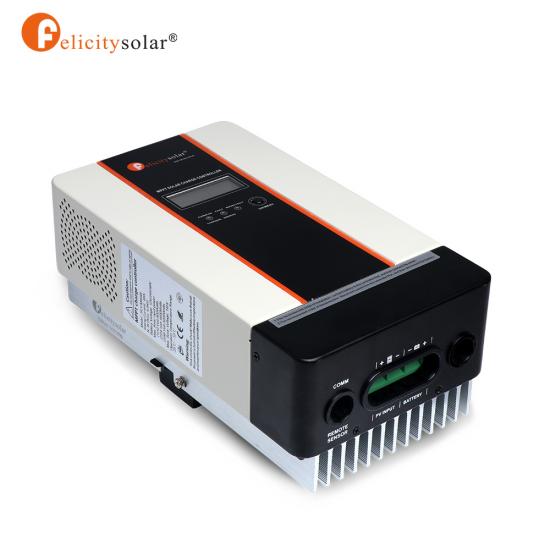

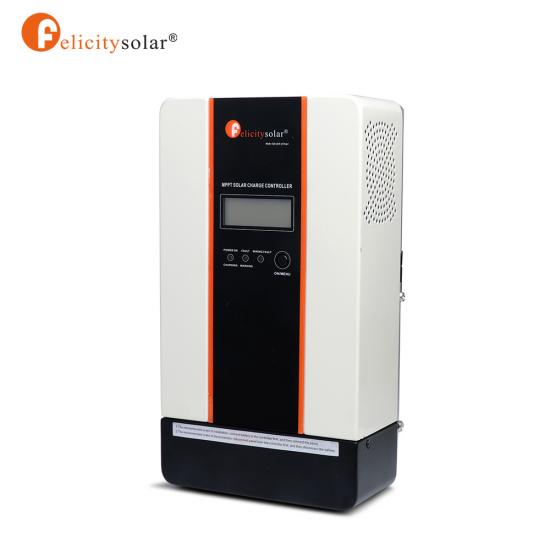

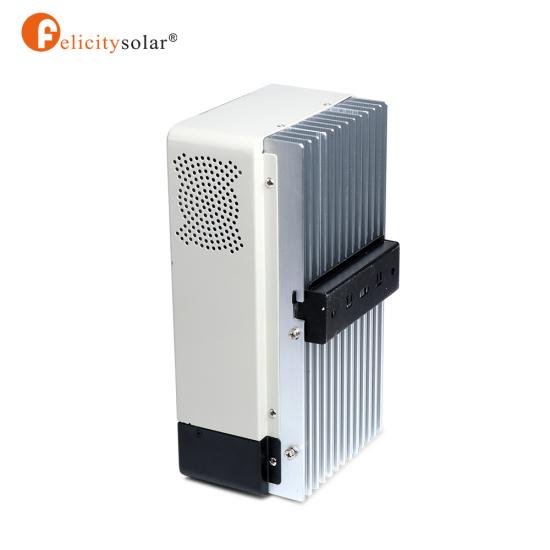

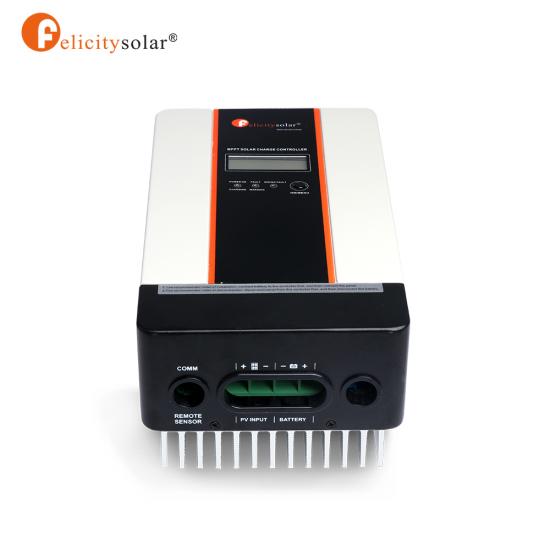

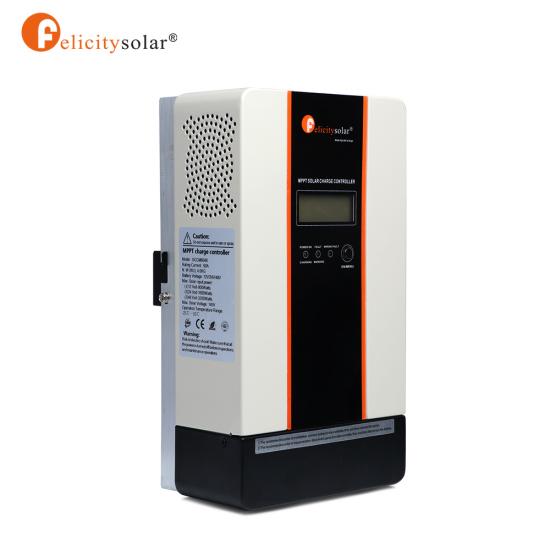

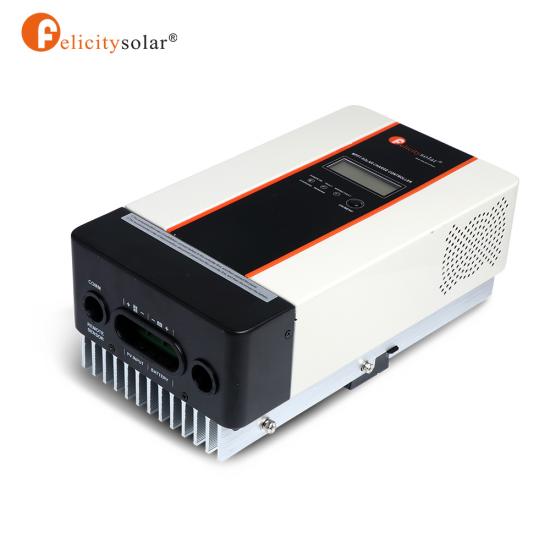

Felicity 60A MPPT Charge Controller

24,500KSh

60Amps 12V/24V/48V MPPT charge controller

Products Feature:

1. Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%

2. Compatible for PV systems in 12V, 24V or 48V

3. Three-stage charging optimizes battery performance

4. Maximum charging current up to 60A

5. Maximum efficiency up to 98%

Data Sheet



Model SCCM6048
Maximum Solar input Voltage 145V
Nominal System Voltage 12,24,48VDC(Auto detection)
Maximum Battery Current 45A
DC Array MPPT Volage Range 12VDC/24VDC/48VDC
PV Array MPPT Volage Range 15-115VDC/30-115VDC-60-115VDC
Maxinmum input Power 12Volt-825Watts
24Volt-1650Watts
48Volt-3300Watts
Charging Algorithm 3-Step
Charging stages Bulk,Absorption,Float Bulk,Absorption,Float
Temperature compensation coefficient -5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.)
Temperature compensation range 0℃ to +50℃ 0℃ to +50℃
Temperature compensated set points Absorption,Float Absorption,Float
Charging Set points Absorption Stage Absorption Stage Float Stage
Flooded Battery 14.6V/29.2V/58.4V 14.6V/29.2V/58.4V 13.5V/27V/54V
ARG/Gel Battery(Default) 14.1V/28.2V/56.4V 14.1V/28.2V/56.4V 13.5V/27V/54V
Overcharge voltage 15V/30V/60V 15V/30V/60V
Overcharge restart voltage 14.5V/29V/58V 14.5V/29V/58V
Battery discharge voltage 8.5V/17V/34V 8.5V/17V/34V
Battery overdischarge voltage 9V/18V/36V 9V/18V/36V
Product size(H*W*D,mm) 283*160*105 mm
Product weight(Kg) 4.0kg
Ambient Temperature Range 0℃ to +55℃
Storage Temperature -40℃ to 75℃
Humidity 0%-90%RH(No condensing)
Enclosure IP31(indoor&vented)
